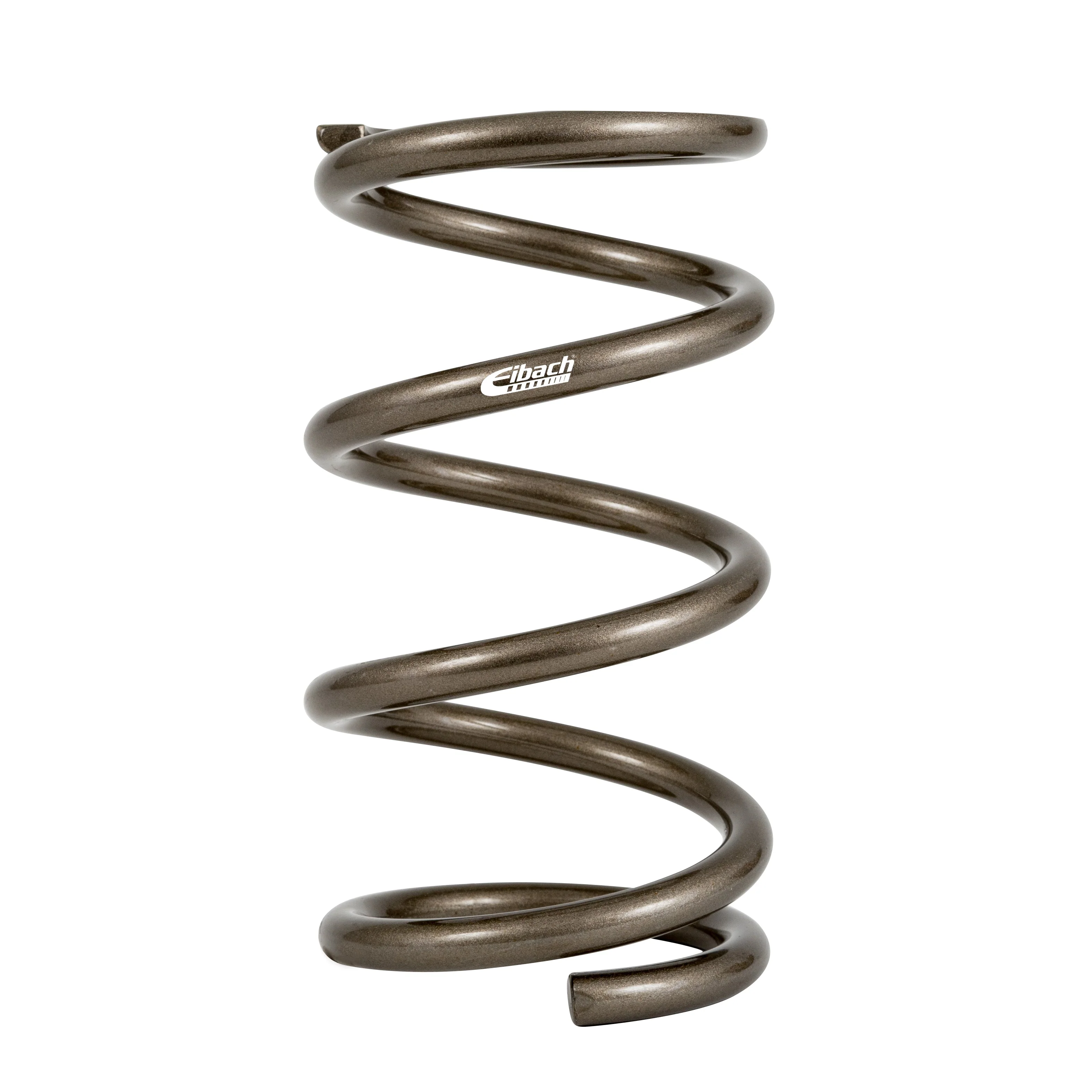

Eibach PFS (PF0950.500.0350) PF0950 Length 5.0" ID 350 lbs Rate

Part Number= PF0950.500.0350

PG= PFS

Length= 9.5 (inch) / 241 (mm)

Diameter= 5.00 O.D. (inch) / 127 O.D. (mm)350 (lbs/inch)

Rate= 6.26118067978533 (KG/mm) 61.2959719789842 (N/mm)

Block Height= 2.79527559055118 (inch) / 71

Travel= 6.69291338582677 (inch) / 170 (mm)

Block Load= 2337.97752808989 (lbs) / 10404 (N))

Weight= 3.852 (lbs) / 1.8 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
