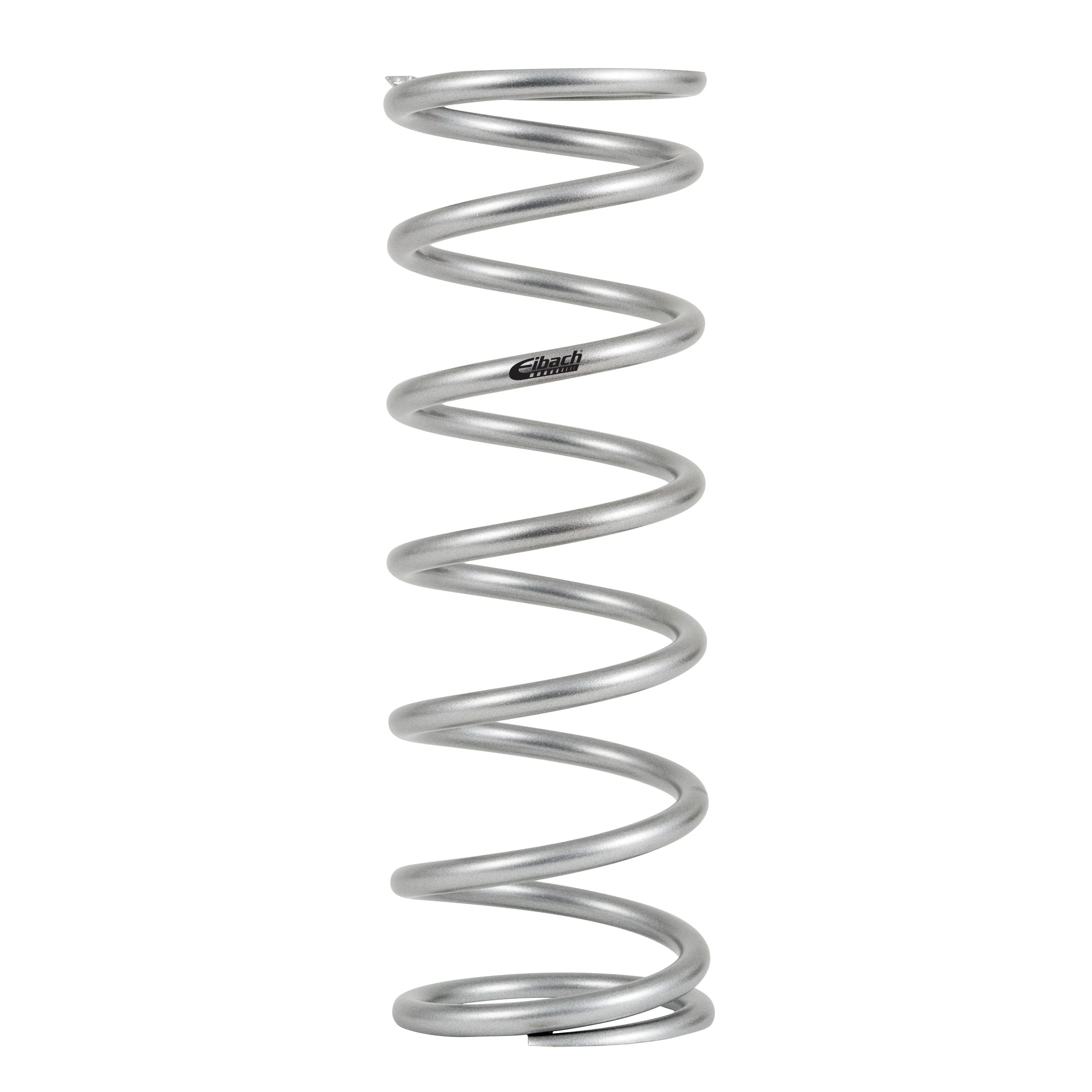

Eibach ERT (0350.300.0050) 350 Length 3.0" ID 50 lbs Rate

Part Number= 0350.300.0050

PG= ERT

Length= 4.72 (inch) / 120 (mm)

Diameter= 3.00 I.D. (inch) / 76 I.D. (mm)50 (lbs/inch)

Rate= 0.89 (KG/mm) 9 (N/mm)

Block Height= 1.22 (inch) / 31

Travel= 3.5 (inch) / 89 (mm)

Block Load= 175 (lbs) / 778 (N))

Weight= 1.41 (lbs) / 0.64 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
