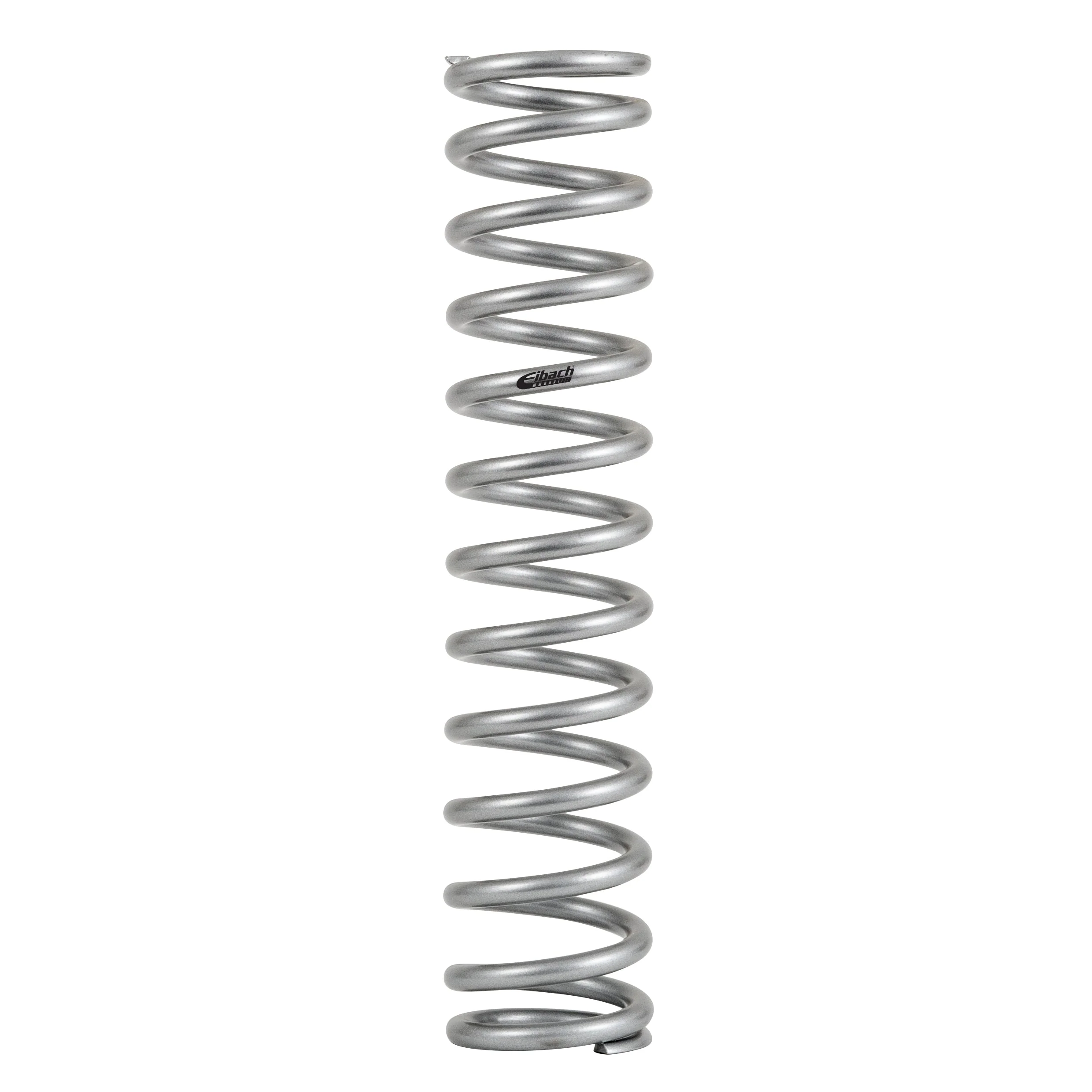

Eibach ERS (2400.375.0450S) 2400 Length 3.75" ID 0450S lbs Rate

Part Number= 2400.375.0450S

PG= ERS

Length= 24 (inch) / 610 (mm)

Diameter= 3.75 I.D. (inch) / 95 I.D. (mm)450 (lbs/inch)

Rate= 8.05 (KG/mm) 79 (N/mm)

Block Height= 11.57 (inch) / 294

Travel= 12.43 (inch) / 316 (mm)

Block Load= 5591 (lbs) / 24870 (N))

Weight= 28.15 (lbs) / 12.77 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
