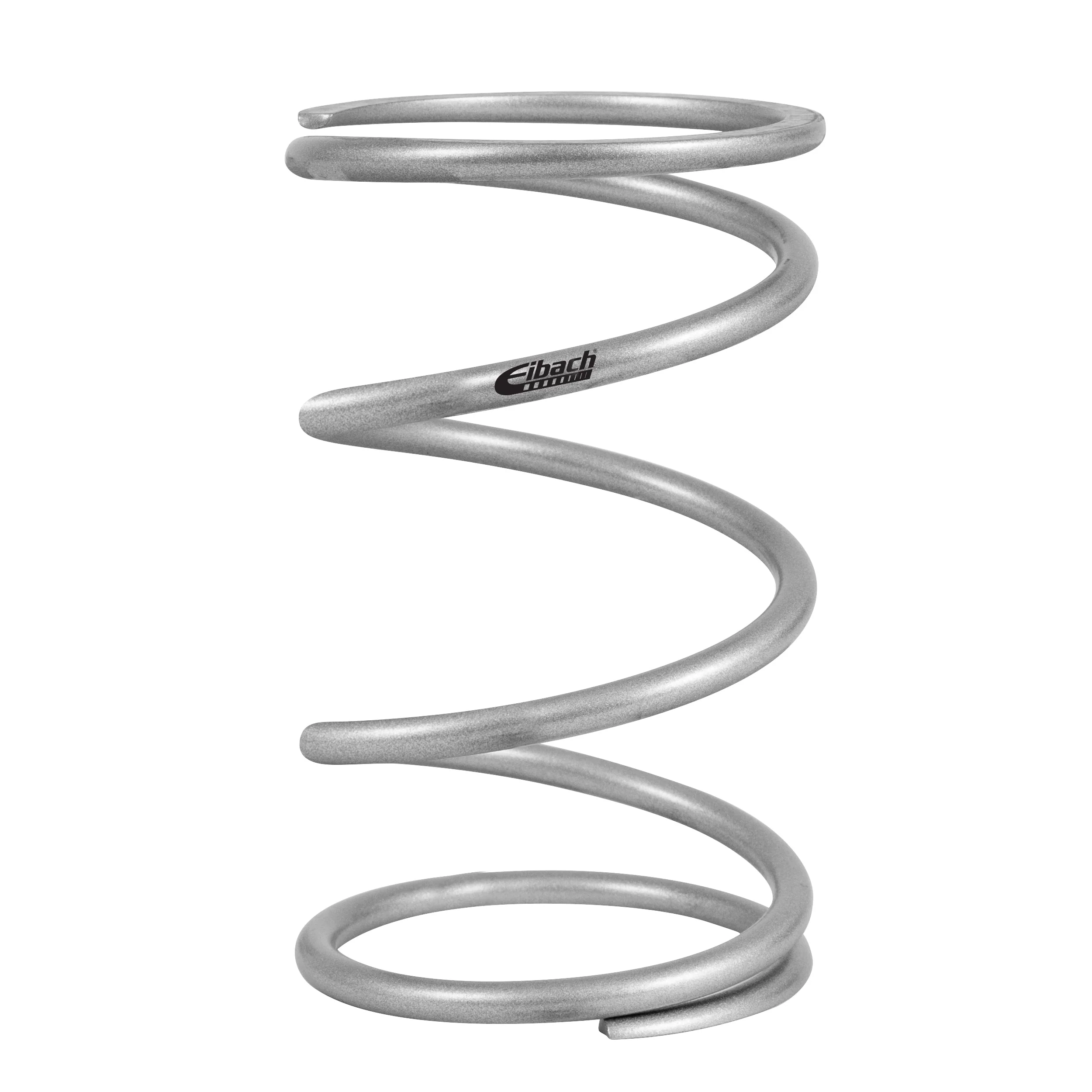

Eibach ERS (1400.250.0550S)
Part Number= 1400.250.0550S
PG= ERS
Length= 14 (inch) / 356 (mm)
Diameter= 2.50 I.D. (inch) / 64 I.D. (mm)550 (lbs/inch)
Rate= 9.84 (KG/mm) 96 (N/mm)
Block Height= 6.68 (inch) / 170
Travel= 7.32 (inch) / 186 (mm)
Block Load= 4026 (lbs) / 17908 (N))
Weight= 8.04 (lbs) / 3.65 (KGS)
Eibach Race Spring System
- Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
- Comprehensive Program of single components
- Single Main Springs with highest rate-linearity and lowest rate tolerance
- Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
- Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
- Smallest Solid heights, maximized spring travels and higher maximum loads
- Spring Surface Stabilization through specialized shot peening
- Every ERS Spring preset to block
- Block and Sag Resistant
- Smallest Tolerances and precise plane parallelism of spring ends
- High Dynamic Durability – under Motorsport conditions
- High quality corrosion protection by phosphating and epoxy coating
- Springs Printed with part-number (speaking code = rate and dimensions)
Eibach ERS (1400.250.0550S)
Part Number= 1400.250.0550S
PG= ERS
Length= 14 (inch) / 356 (mm)
Diameter= 2.50 I.D. (inch) / 64 I.D. (mm)550 (lbs/inch)
Rate= 9.84 (KG/mm) 96 (N/mm)
Block Height= 6.68 (inch) / 170
Travel= 7.32 (inch) / 186 (mm)
Block Load= 4026 (lbs) / 17908 (N))
Weight= 8.04 (lbs) / 3.65 (KGS)
Eibach Race Spring System
- Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
- Comprehensive Program of single components
- Single Main Springs with highest rate-linearity and lowest rate tolerance
- Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
- Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
- Smallest Solid heights, maximized spring travels and higher maximum loads
- Spring Surface Stabilization through specialized shot peening
- Every ERS Spring preset to block
- Block and Sag Resistant
- Smallest Tolerances and precise plane parallelism of spring ends
- High Dynamic Durability – under Motorsport conditions
- High quality corrosion protection by phosphating and epoxy coating
- Springs Printed with part-number (speaking code = rate and dimensions)
