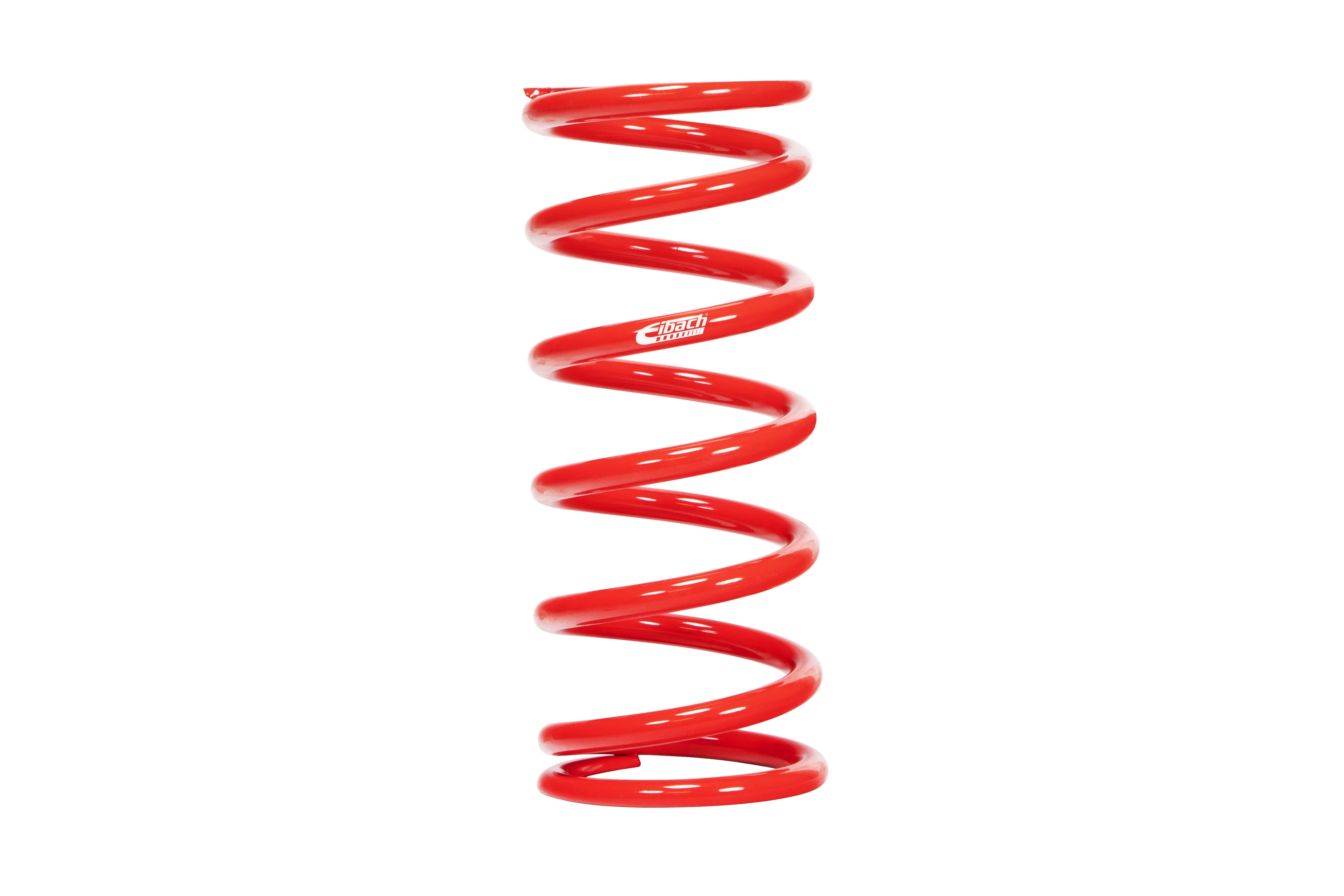

Eibach ERS (0600.250.0600)

Part Number= 0600.250.0600

PG= ERS

Length= 6 (inch) / 152 (mm)

Diameter= 2.50 I.D. (inch) / 64 I.D. (mm)600 (lbs/inch)

Rate= 10.71 (KG/mm) 105 (N/mm)

Block Height= 2.68 (inch) / 68

Travel= 3.32 (inch) / 84 (mm)

Block Load= 1990 (lbs) / 8852 (N))

Weight= 2.35 (lbs) / 1.07 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
