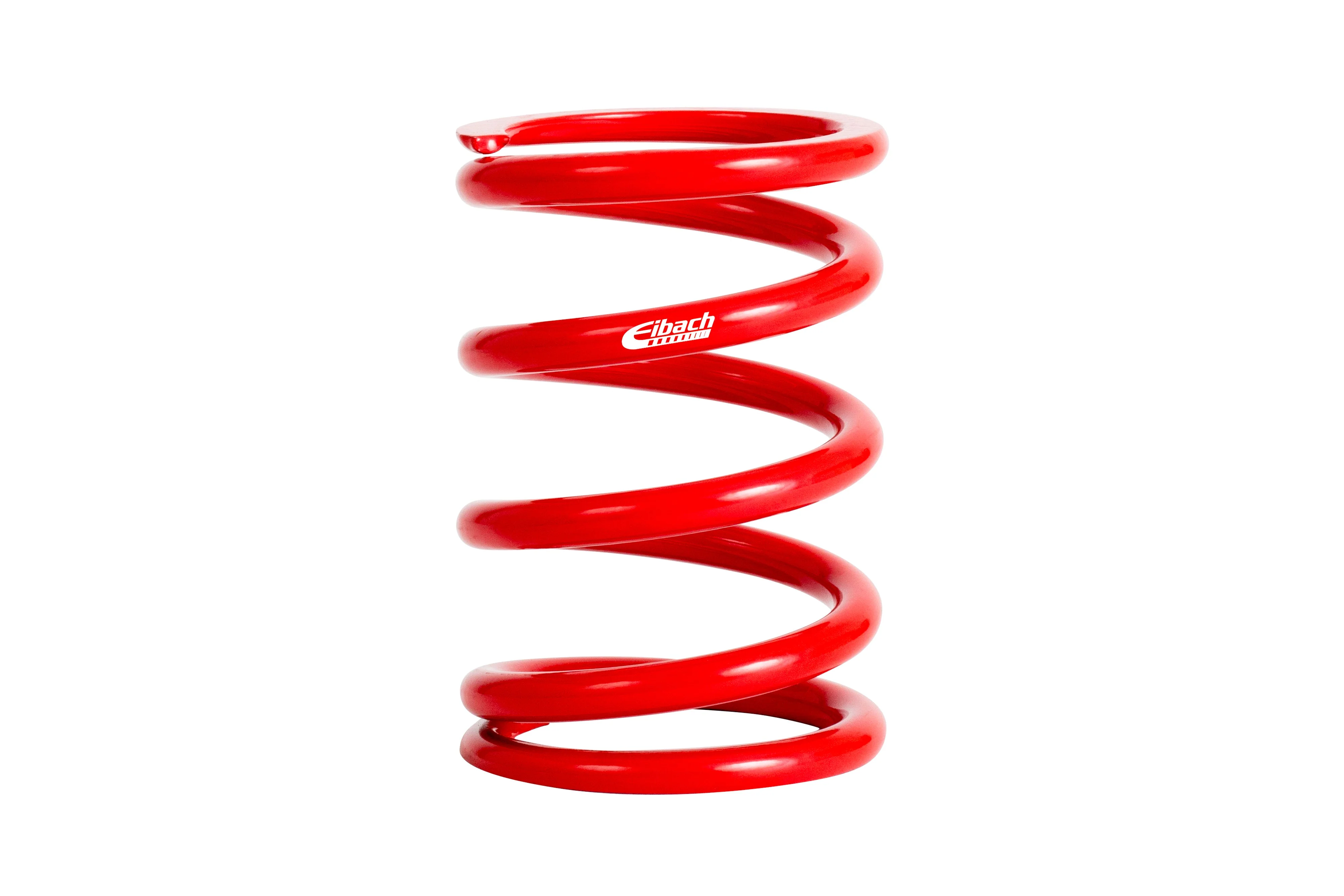

Eibach ERS (0600.200.0400) 600 Length 2.0" ID 400 lbs Rate

Part Number= 0600.200.0400

PG= ERS

Length= 6 (inch) / 152 (mm)

Diameter= 2.00 I.D. (inch) / 51 I.D. (mm)400 (lbs/inch)

Rate= 7.14 (KG/mm) 70 (N/mm)

Block Height= 2.28 (inch) / 58

Travel= 3.7 (inch) / 94 (mm)

Block Load= 1472 (lbs) / 6550 (N))

Weight= 1.41 (lbs) / 0.64 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
