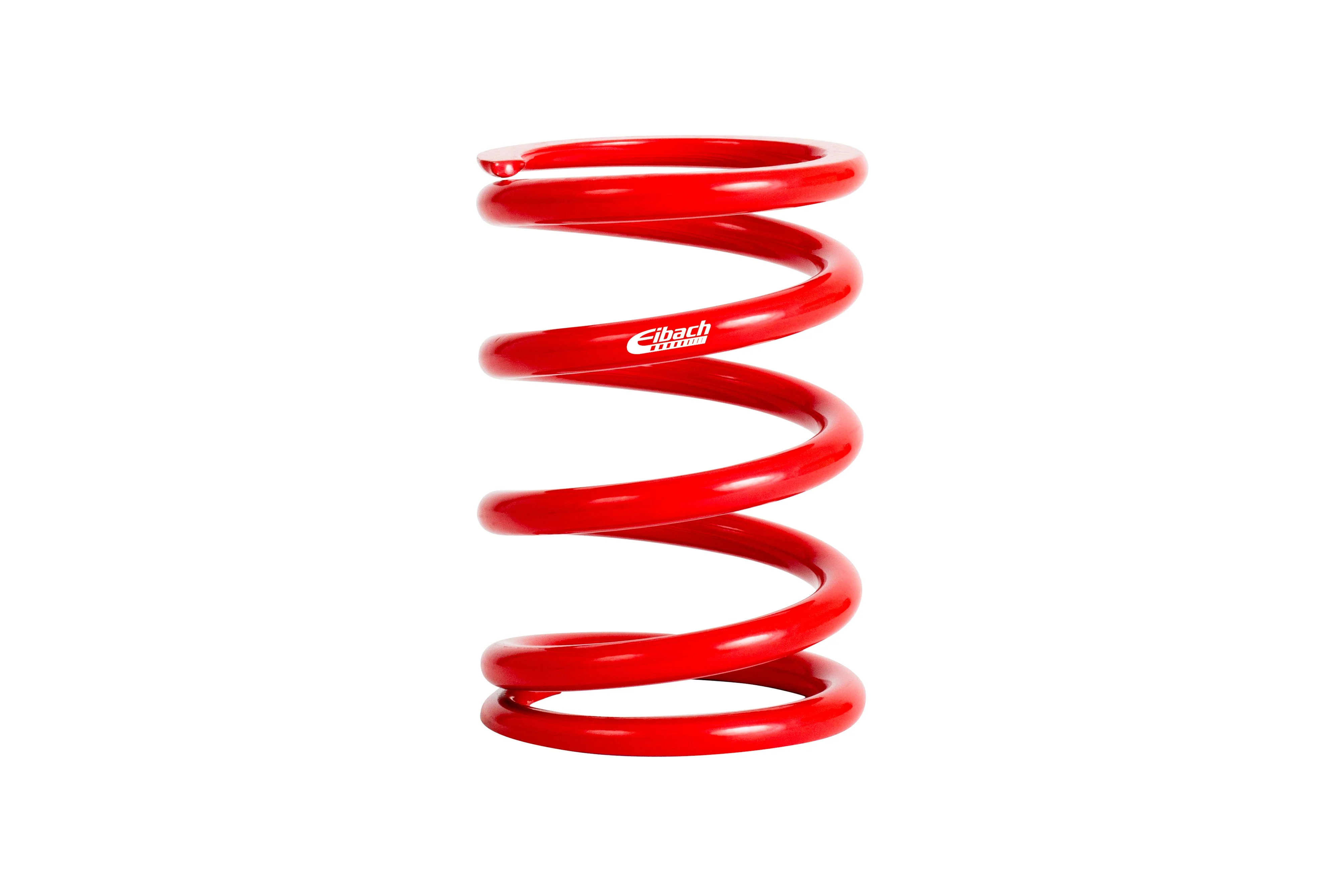

Eibach ERM (300-70-0030) 300 Length 70mm ID 30 lbs Rate

Part Number= 300-70-0030

PG= ERM

Length= 11.81 (inch) / 300 (mm)

Diameter= 2.75 I.D. (inch) / 70 I.D. (mm)171 (lbs/inch)

Rate= 3.06 (KG/mm) 30 (N/mm)

Block Height= 3.46 (inch) / 88

Travel= 8.35 (inch) / 212 (mm)

Block Load= 1432 (lbs) / 6370 (N))

Weight= 3.18 (lbs) / 1.44 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
