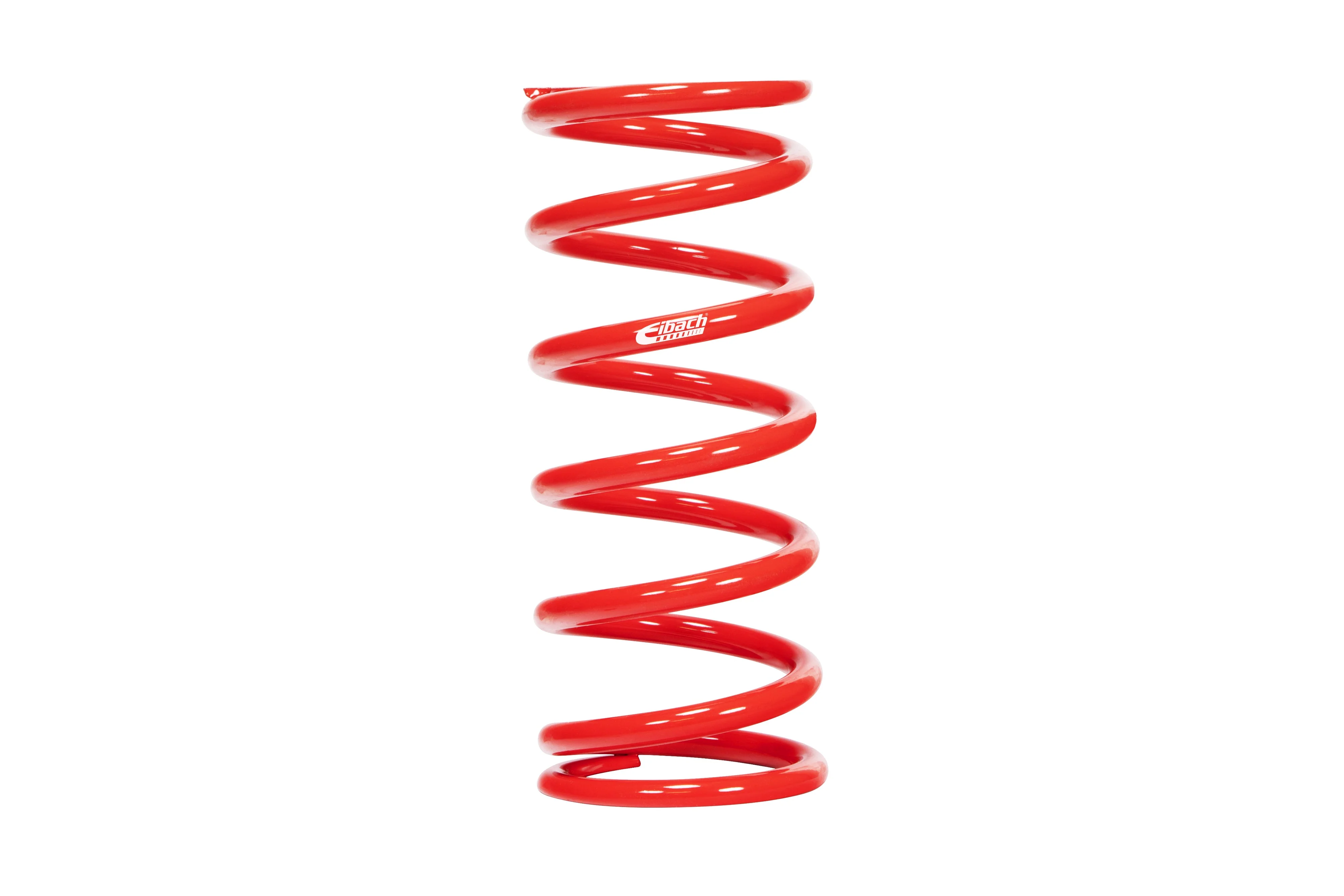

Eibach ERM (230-065-T230) 230 Length 65mm ID T230 lbs Rate

Part Number= 230-065-T230

PG= ERM

Length= 9.06 (inch) / 230 (mm)

Diameter= 2.56 I.D. (inch) / 65 I.D. (mm)1311 (lbs/inch)

Rate= 23.41 (KG/mm) 230 (N/mm)

Block Height= 5.12 (inch) / 130

Travel= 3.94 (inch) / 100 (mm)

Block Load= 5166 (lbs) / 22989 (N))

Weight= 7.52 (lbs) / 3.42 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
