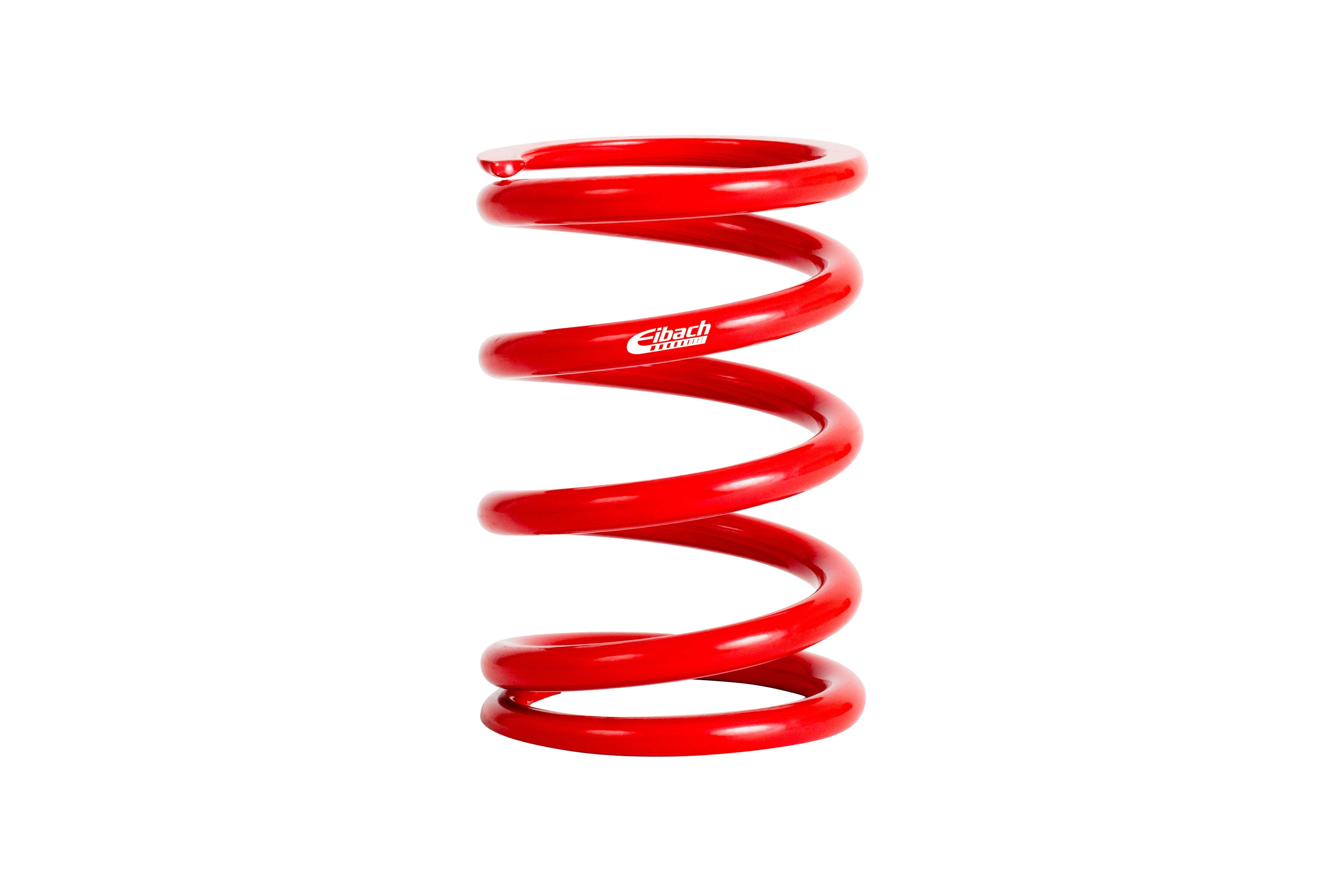

Eibach ERM (225-70-0080) 225 Length 70mm ID 80 lbs Rate

Part Number= 225-70-0080

PG= ERM

Length= 8.86 (inch) / 225 (mm)

Diameter= 2.75 I.D. (inch) / 70 I.D. (mm)457 (lbs/inch)

Rate= 8.18 (KG/mm) 80 (N/mm)

Block Height= 3.29 (inch) / 84

Travel= 5.57 (inch) / 141 (mm)

Block Load= 2545 (lbs) / 11319 (N))

Weight= 3.72 (lbs) / 1.69 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
