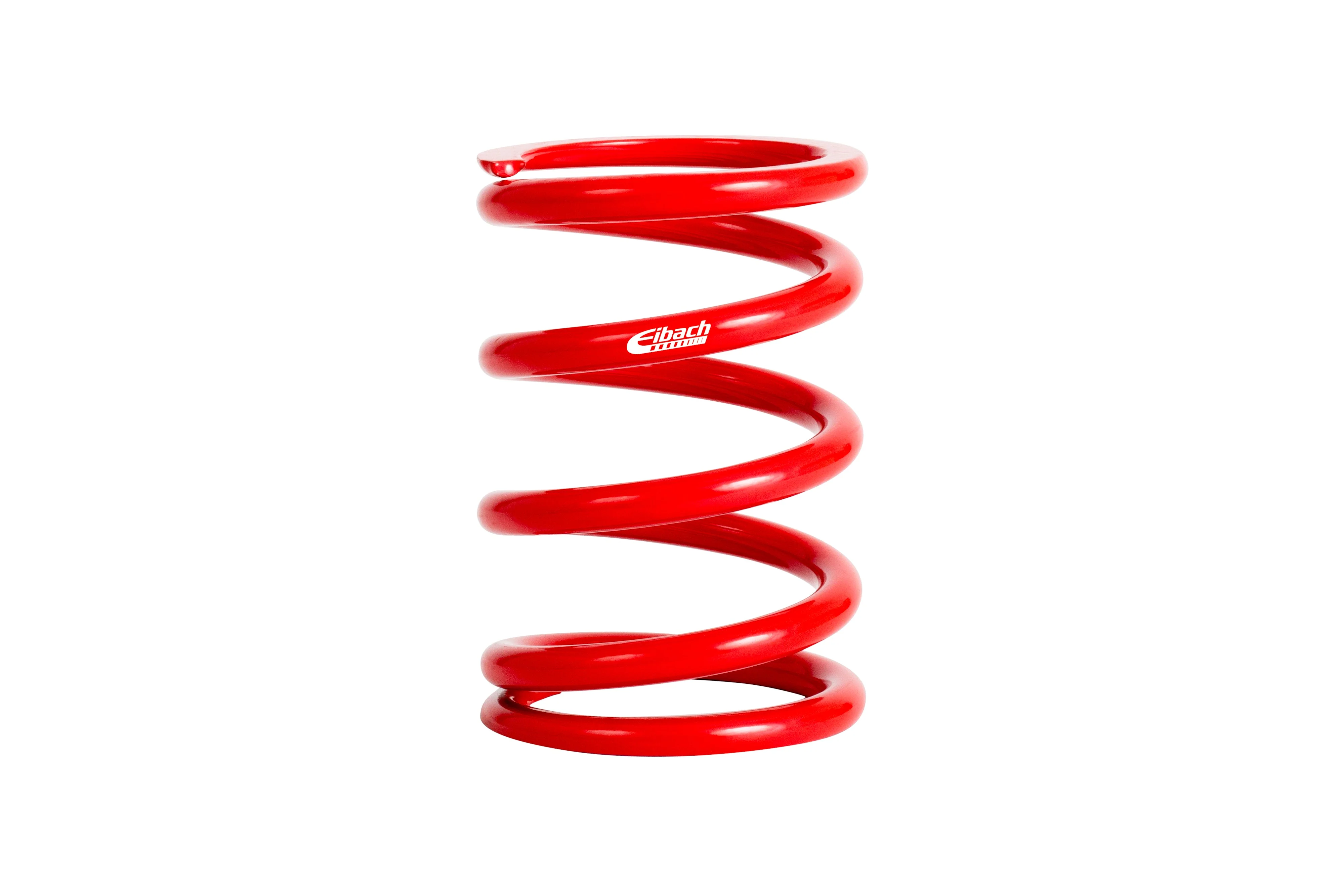

Eibach ERM (200-70-0120) 200 Length 70mm ID 120 lbs Rate

Part Number= 200-70-0120

PG= ERM

Length= 7.87 (inch) / 200 (mm)

Diameter= 2.75 I.D. (inch) / 70 I.D. (mm)685 (lbs/inch)

Rate= 12.23 (KG/mm) 120 (N/mm)

Block Height= 3.17 (inch) / 80

Travel= 4.71 (inch) / 120 (mm)

Block Load= 3225 (lbs) / 14348 (N))

Weight= 3.9 (lbs) / 1.77 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
