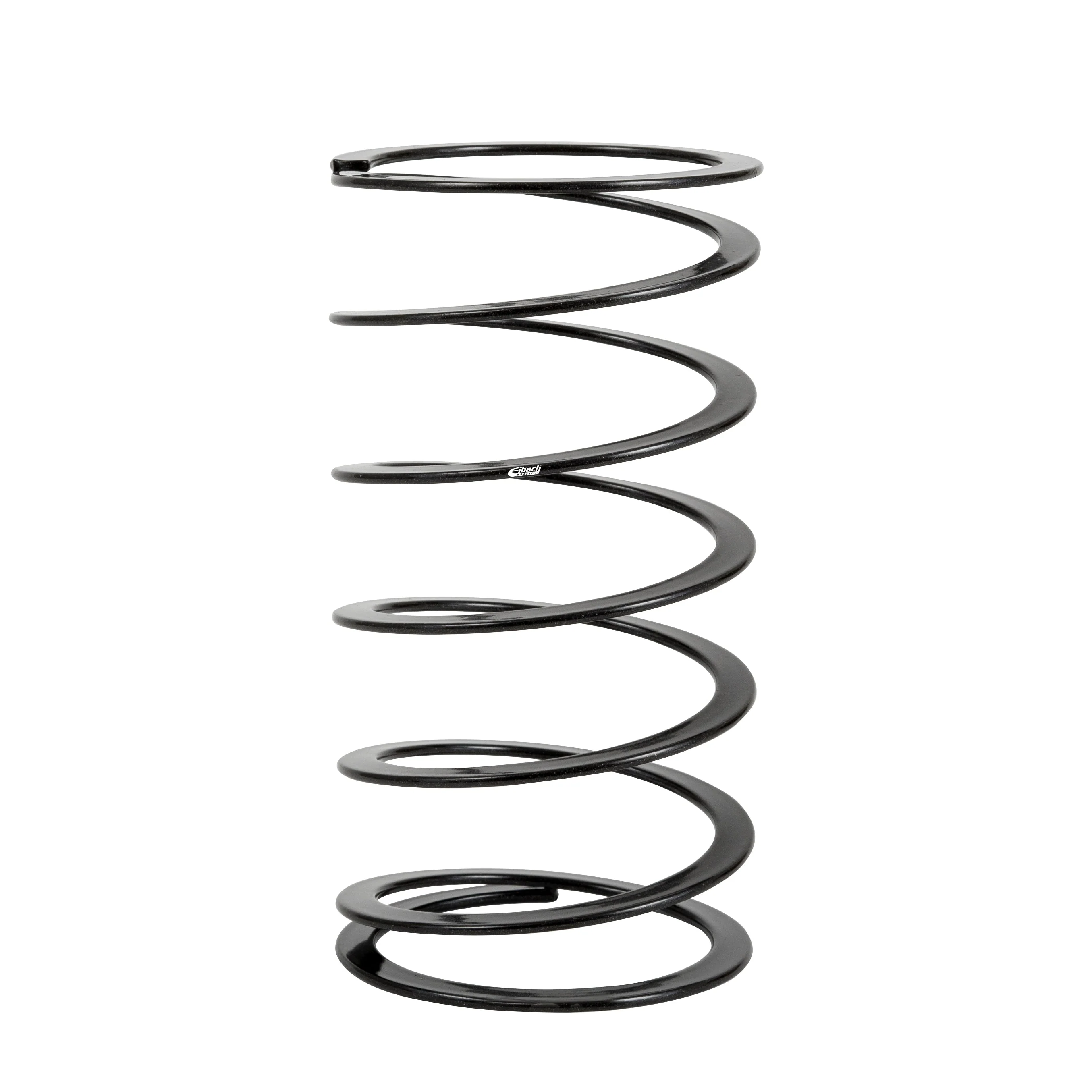

Eibach EPR (PR1800.500.0125) PR1800 Length 5.0" ID 125 lbs Rate

Part Number= PR1800.500.0125

PG= EPR

Length= 18 (inch) / 457 (mm)

Diameter= 5.00 O.D. (inch) / 127 O.D. (mm)125 (lbs/inch)

Rate= 2.23 (KG/mm) 22 (N/mm)

Block Height= 4.09842519685039 (inch) / 104.1

Travel= 13.9015748031496 (inch) / 353.1 (mm)

Block Load= 1737.63489208633 (lbs) / 7729 (N))

Weight= 5.7304 (lbs) / 2.6 (KGS)

Eibach Race Spring System

• Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
• Comprehensive Program of single components
• Single Main Springs with highest rate-linearity and lowest rate tolerance
• Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
• Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
• Smallest Solid heights, maximized spring travels and higher maximum loads
• Spring Surface Stabilization through specialized shot peening
• Every ERS Spring preset to block
• Block and Sag Resistant
• Smallest Tolerances and precise plane parallelism of spring ends
• High Dynamic Durability – under Motorsport conditions
• High quality corrosion protection by phosphating and epoxy coating
• Springs Printed with part-number (speaking code = rate and dimensions)
